5 Silver Blades Fan Size from 2.5M to 7.3M Ceiling Mounted Fans
Product Description:

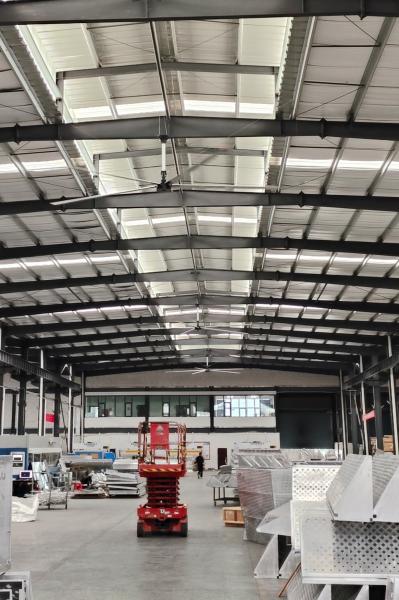

Unlike traditional high-speed fans, HVLS fans move massive volumes of air quietly and efficiently, making them ideal for warehouses, factories, hangars, gymnasiums, agricultural facilities, and commercial buildings.
Features:
1. Lower noise level
2. Wider and material durability blades
3. IP56-rated against dust, water jets, and other harsh environments
4. Equipped with high-torque, low-energy permanent magnet (PM) motors
Technical Parameters:
| DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
| AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
| MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
| WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
| MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
| FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Applications:
Manufacturing Facilities
Warehouses
Distribution Centers
Agriculture & Horticulture
Fitness Centers
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
Q: What is your delivery time? A: Usually we have stock, delivery time within 7 working days. If there is customized requirement, time is negotiable. Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
