Large Industrial Ceiling Fans With Aerospace-grade Aluminum Alloy Blades
Product Description:

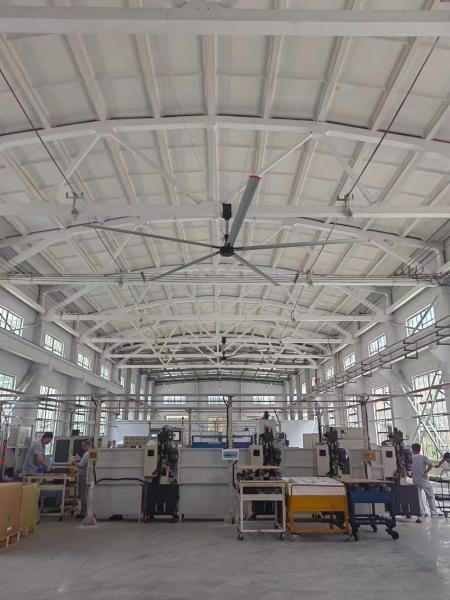

Engineered for extreme durability, our 24ft Industrial Fan features aerospace-grade aluminum alloy blades and a 3-phase 1.5kw pmsm motor. The corrosion-resistant coating ensures longevity in humid environments, while its aerodynamic design reduces energy consumption by 30%. Ideal for warehouses, workshops, and agricultural barns, this fan supports 5-speed adjustments.
Features:
1. Lower noise level
2. Wider blades
3. Higher air volume
4. More energy efficient
5. Improved air circulation and distribution
Technical Parameters:
| DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
| AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
| MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
| WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
| MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
| FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Basic technical parameters: Model SFFCA73 (PMSM SERIES)
| No. | Main Configuration | Description | Photo |

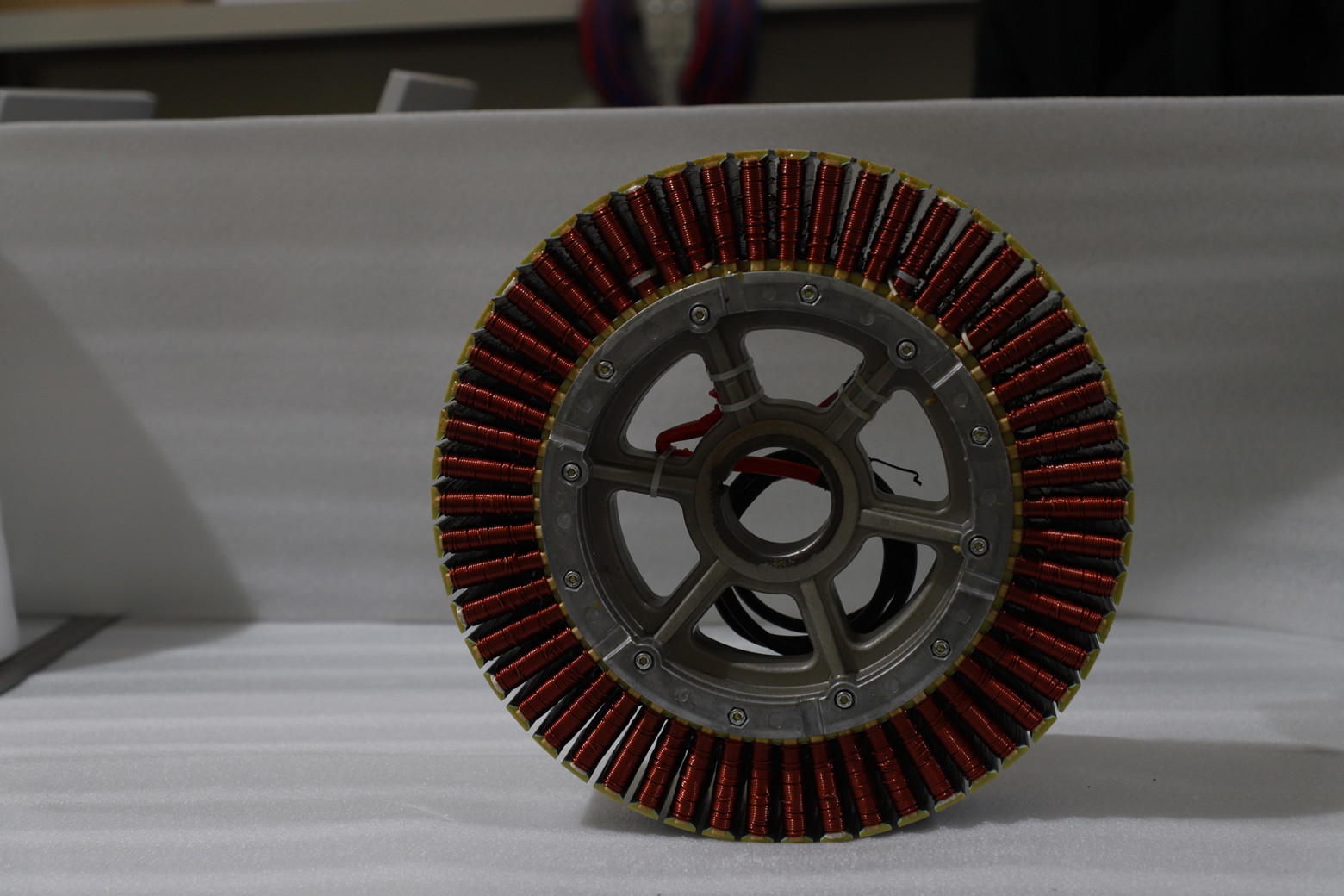

| 1 | Motor | 1. Industry's top PMSM motor; Power: 1.5kw; Insulation class: F, 50/60HZ; 2. Energy efficiency rating IE2; Operating noise less than 40dB; 3. No gear box, no oil change, truly maintenance-free; |
|

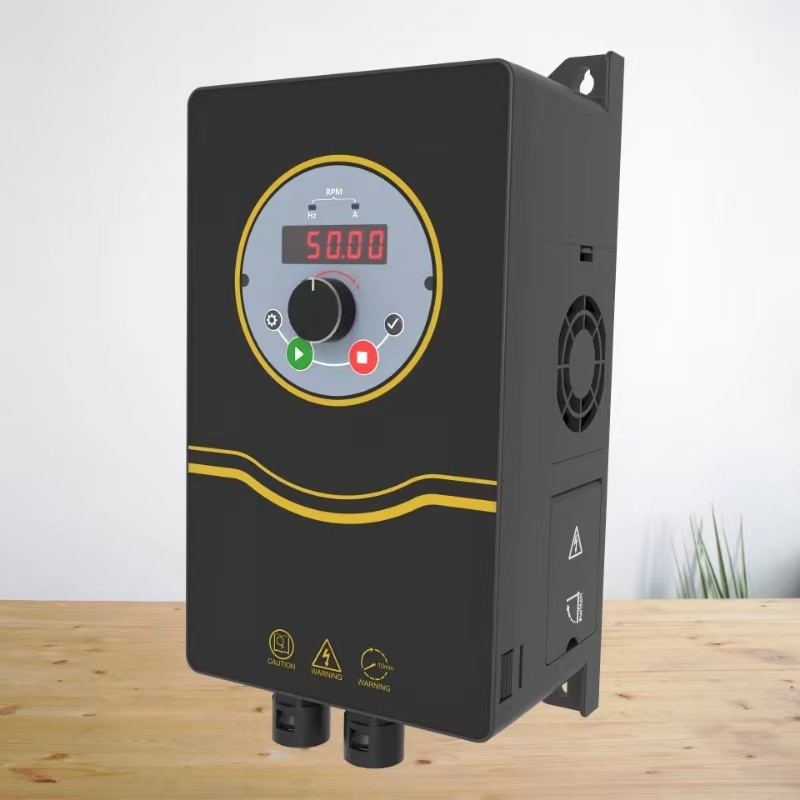

| 2 | Electrical control system | Built-in safety protection module, Control system: Built-in safety protection module, automatically cut off the output in the event of an accident. |
|
| 3 | Blades | Our blade is made of 6063T5 special high-strength aviation magnesium-aluminum alloy material, which is extruded into one piece. |
|
Applications:
✔ Manufacturing
✔ Industrial Plants
✔ Warehousing & Logistics
✔Agriculture & Greenhouses
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
Q: What is your delivery time? A: Usually we have stock, delivery time within 7 working days. If there is customized requirement, time is negotiable. Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
